Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "Fuel Pump ")

  2. Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).
    G12609121Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fixing clip (A), and then disconnect the feed tube (B).
  4. Remove the head assembly (C) after releasing the cushion fixing clip (D)
    G12609122Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the reservoir-cup after releasing the fixing hook (A).
  6. Remove the fuel pressure regulator fixing clip (A).
  7. Remove the fuel pressure regulator (B) from the fuel filter.

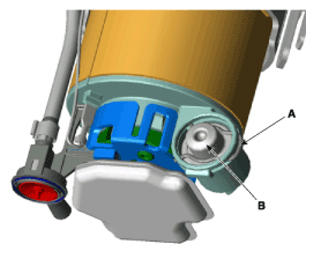

    G12609123Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the pre-filter (B) after releasing the fixing hooks (A).
  9. Remove the fuel pump motor (C) from the fuel filter (D) by pulling it in down direction.
    G12609124Courtesy of HYUNDAI MOTOR AMERICA
