Front Muffler
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.

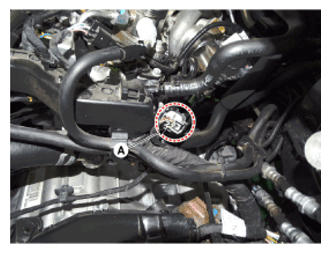

- Disconnect the rear oxygen sensor connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

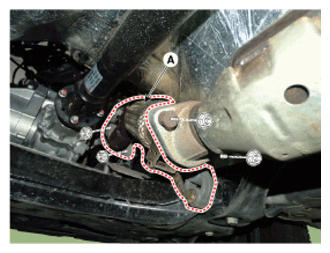

- Remove the front muffler (A).
Tightening torque:
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
NOTE:
- When installing, replace with new gaskets.
