Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.

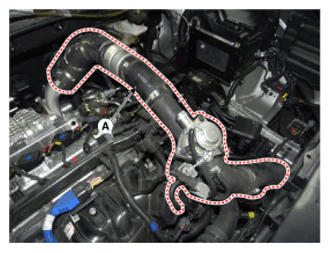

Remove the intercooler inlet hoses & pipe (A).
Tightening torque

Bolt:

19.6 ~ 26.4 N.m (2.0 ~ 2.7 kgf.m, 14.4 ~ 19.5 lb-ft)

Clamp:

4.9 ~ 6.8 N.m (0.5 ~ 0.7 kgf.m, 3.6 ~ 5.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

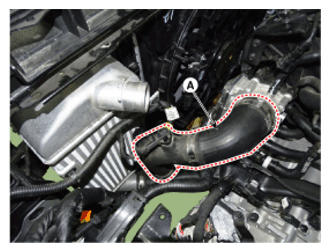

Remove the intercooler outlet hose (A).
Tightening torque:

4.9 ~ 6.8 N.m (0.5 ~ 0.7 kgf.m, 3.6 ~ 5.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER ")

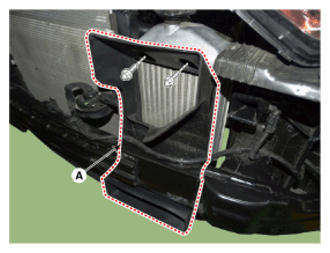

Remove the intercooler air guard (A).

Courtesy of HYUNDAI MOTOR AMERICA

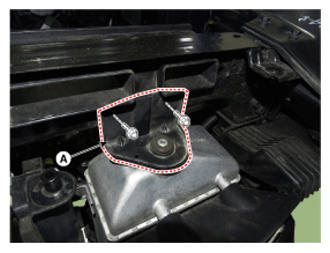

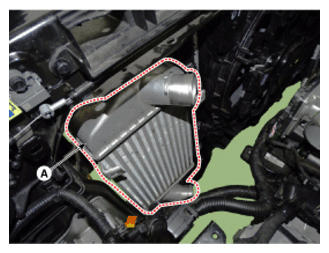

Remve the intercooler uper mounting bracket (A) and then remove the intercooler (B).
Tightening torque:

3.9 ~ 5.7 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.2 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
