Home >> Hyundai >> 2018 >> Tucson Sport, 4WD >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 3 (Intake And Exhaust System - 1.6L) >> Intercooler >> Components and Components Location >> Components

Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

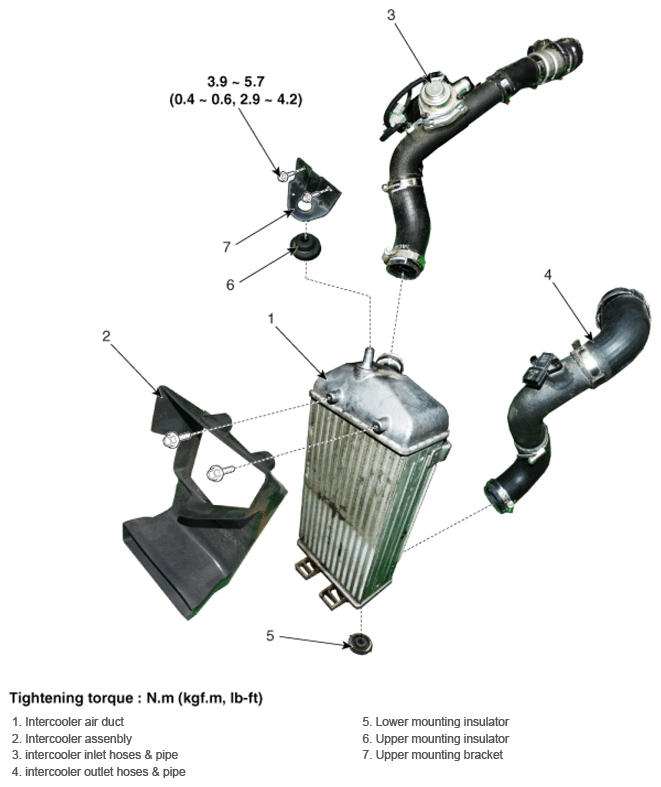

Fig 1: Intercooler Components With Torque Specification
G12608813Courtesy of HYUNDAI MOTOR AMERICA
