Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Remove the engine cover.
Disconnect the battery negative terminal.
Disconnect the engine wiring connector and haness clamp and disconnect the wiring from intake manifold.

Courtesy of HYUNDAI MOTOR AMERICA

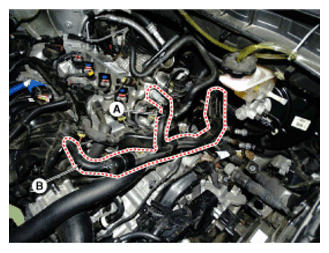

Disconnect the PCV (Positive crankcase ventilation) hose (A) and the PCSV (Purge control solenoid valve) (B).

Courtesy of HYUNDAI MOTOR AMERICA

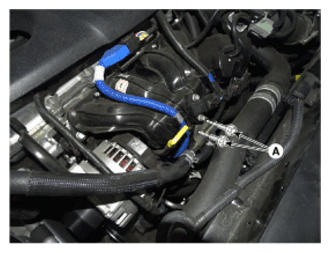

Disconnect the reservior tank water hose bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

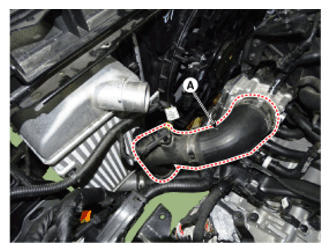

Remove the intercooler outlet hose (A).
Tightening torque:

4.9 ~ 6.8 N.m (0.5 ~ 0.7 kgf.m, 3.6 ~ 5.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

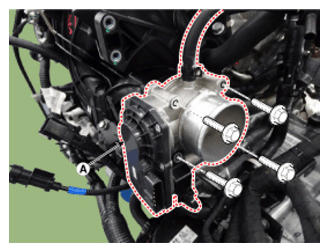

Remove the installation bolts, and then remove the ETC module (A) from the engine.
Electronic throttle body Installation bolt:

7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.7 ~ 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

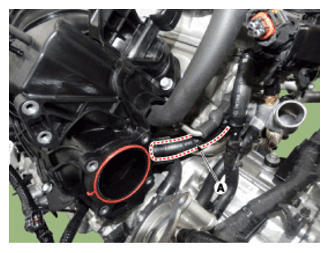

Disconnect the vacuum hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

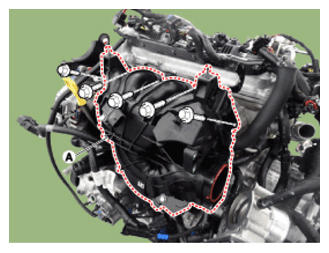

Remove the intake manifold (A) with the gasket.
Tightening torque:

18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, replace with new gaskets.
- When installing the intake manifold, tighten the boltsand nuts with pre-torque first, and then tighten thebolts and nuts with specified torque in the sequenceshown.

  Fig 1: Intake Manifold Bolts Tightening Sequence
  Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
