Air Cleaner Element Replacement
WARNING: This page is about a different variant/trim than selected.

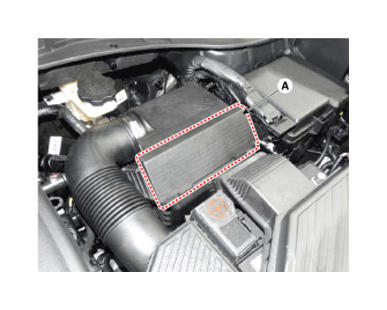

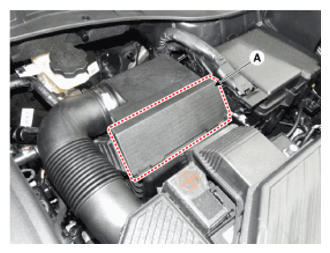

- Pull the clamp to open the service cover (A).

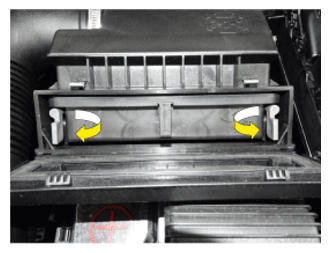

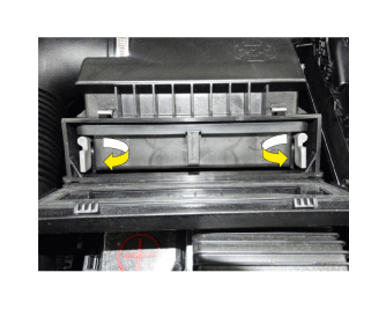

- Turn the fixing lever of the element to the "UNLOCK" direction to unlock it. Then pull the element to take it out.

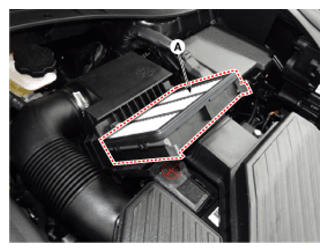

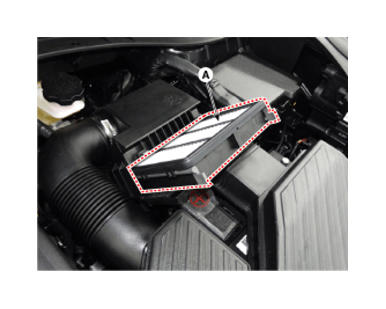

- Replace the air cleaner element (A) with a new one.

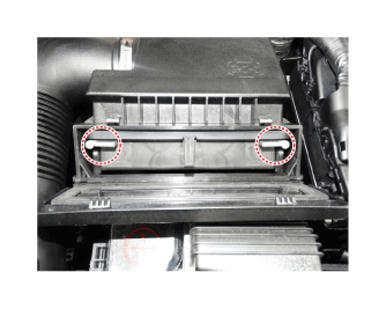

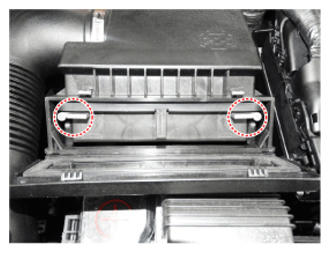

- Insert the element to the inside of the air cleaner completely. Turn the lever to the "LOCK" direction to lock it firmly. Then close the service cover (A).
