Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable

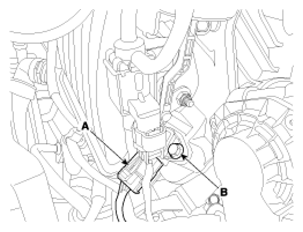

  2. Disconnect the manifold absolute pressure sensor connector (A)
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.
    G12610881Courtesy of HYUNDAI MOTOR AMERICA
