Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable
  2. Remove the resonator and the air intake hose.

    (Refer to Engine Mechanical System - "INTAKE AND EXHAUST SYSTEM - 2.0L ")

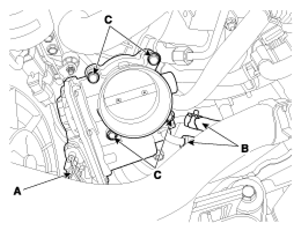

  3. Disconnect the ETC module connector (A)
  4. Disconnect the coolant hoses (B)
  5. Remove the installation bolts (C), and then remove the ETC module from the engine.
    G12610876Courtesy of HYUNDAI MOTOR AMERICA
