Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

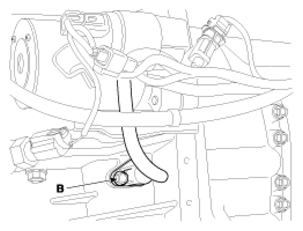

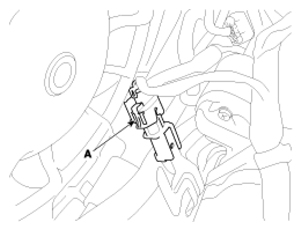

  2. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.
    G12610892Courtesy of HYUNDAI MOTOR AMERICA
    G12610893Courtesy of HYUNDAI MOTOR AMERICA
