Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable
  2. Disconnect the CVVT oil control valve connector (A)
  3. Remove the installation bolt (B), and then remove the valve from the engine.

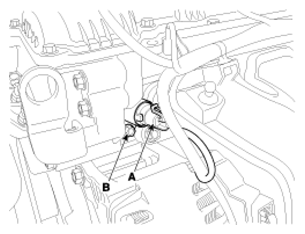

    [Bank 1/Intake]

    G12610944Courtesy of HYUNDAI MOTOR AMERICA

    [Bank 1/Exhaust]

    G12610945Courtesy of HYUNDAI MOTOR AMERICA
