Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")
- Disconnect the fuel sender connector (B).

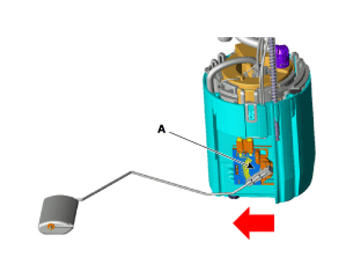

- Remove the fuel sender (A) in the direction of an arrow.
