Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Remove the rear seat.
(Refer to Body - "REAR SEAT ASSEMBLY ")

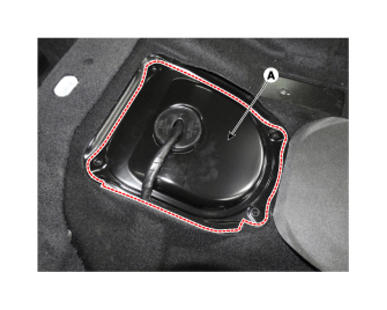

- Remove the fuel pump service cover (A).

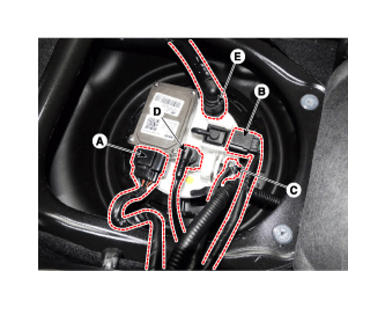

- Disconnect the fuel pump control module connector (A) and the fuel tank pressure sensor connector (B)
- Disconnect the fuel pressure sensor connector (C)
- Disconnect the fuel feed tube quick connector (D) and the vapor tube quick-connector (E).

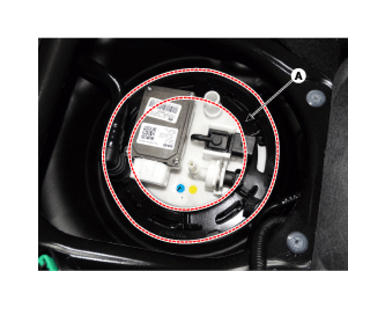

- Remove the locking ring (A) by using the special service tool [No.: 09310-B8100].NOTE:
- When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
- When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
- Remove the fuel pump from the fuel tank.
