Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

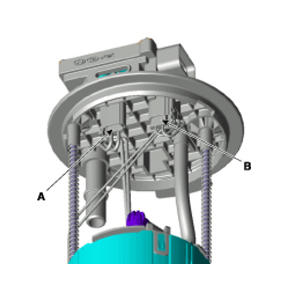

- Disconnect the electric pump wiring connector (A), and the fuel sender connector (B).

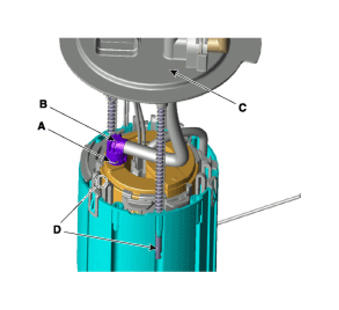

- Remove the fixing clip (A), and then disconnect the feed tube (B)
- Remove the head assembly (C) after releasing the cushion fixing clip (D)
- Remove the reservoir-cup after releasing the fixing hook (A).

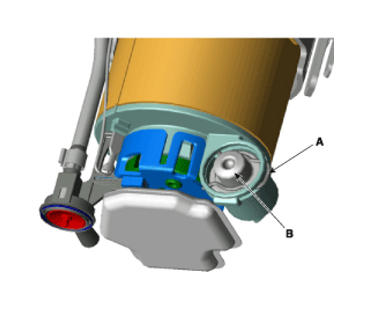

- Remove the fuel pressure regulator fixing clip (A).
- Remove the fuel pressure regulator (B) from the fuel filter.
