Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

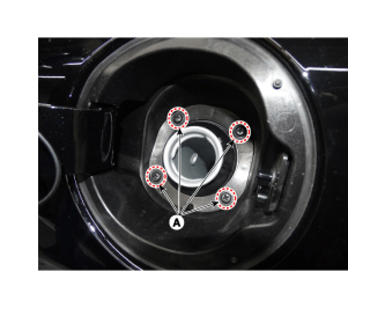

  1. Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).
    G12611011Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the rear-LH wheel, tire, and the inner wheel house

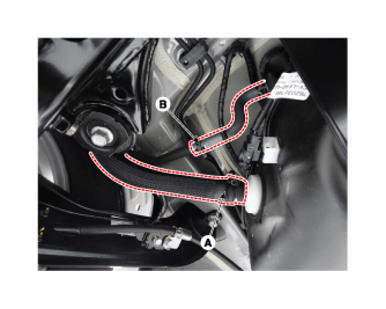

  3. Disconnect the fuel filter hose (A) and the ventilation hose (B).
    G12611012Courtesy of HYUNDAI MOTOR AMERICA

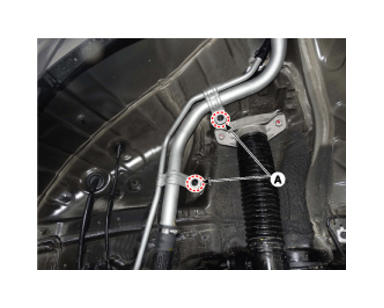

  4. Remove the filler-neck assembly from the vehicle after removing the bracket mounting nuts (A).
    G12611013Courtesy of HYUNDAI MOTOR AMERICA
