Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable

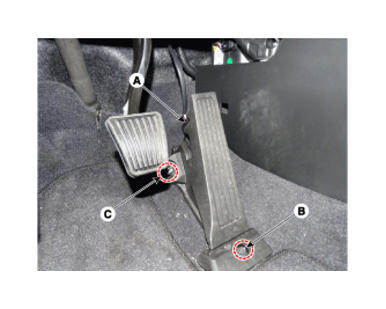

  2. Disconnect the accelerator position sensor connector (A)
  3. Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.
    G12611014Courtesy of HYUNDAI MOTOR AMERICA
