Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the air duct and air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the starter cable (A) from the B terminal on the solenoid then disconnect the connector from the S terminal (B).
    G12610791Courtesy of HYUNDAI MOTOR AMERICA

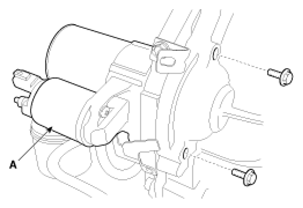

  4. Remove the 2 bolts holding the starter, then remove the starter (A).
    G12610792Courtesy of HYUNDAI MOTOR AMERICA
