DUAL CLUTCH TRANSMISSION SPECIAL SERVICE TOOLS
| Tool (Number and Name) | Illustration | Use | ||
|---|---|---|---|---|
| 09200-3N000 Engine support fixture (Beam) |

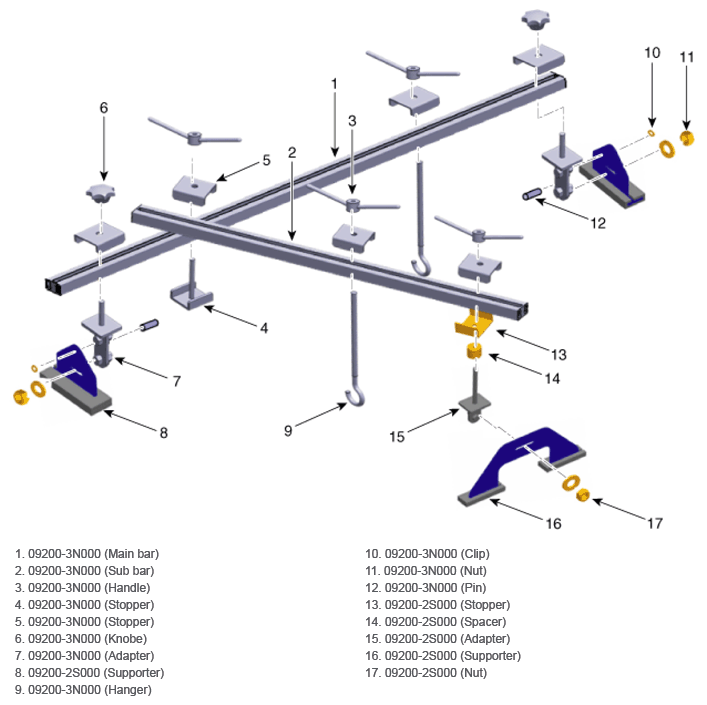

Removal and installation of the transaxle. Use this beam (SST No.: 09200-3N000) with the supporter (SST No.: 09200-2S000). (1) Permit operating with 09200-38001. (1) Refer to the engine support fixture assembly drawing below. |
|||
| A: 09200-2S000 B: 09200-2S100 C: 09200-2S200 Engine support fixture (Supporter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S000). (1) Refer to the engine support fixture assembly drawing below. |
|||
| 09430-C1190 Oil seal installer |
Used for installing differential oil seal of both side in case of 2WD vehicle[Using with bar (SST No. 09231-H1100)] [2WD] |
|||
| 09431-39000 Oil seal installer |
Used for installing differential oil seal [Used with the handle (09500-11000)] [4WD] |
|||
| 09473-D3500 Oil seal installer |
Used for installing driven gear oil seal Used with the handle (09231-H1100) [4WD] |
|||
| 09231-H1100 Bar |
Installation of the differential oil seal in the transaxle case and housing side.[Using with oil seal installer (SST No.:09430-C1190)] | |||
| 09480-A3800 Inhibitor switch neutral fixed pin |
When installing the manual control lever on the inhibitor switch, used to align the neutral position. | |||
| 09430-C1180 Dual clutch remover |
Used for removing dual clutch assembly | |||
| 09430-2A240 Dual clutch Installer |
Used for installing dual clutch assembly | |||
| 09430-C1300 Clutch abrasion compensation tool |
Used for adjusting clutch actuator Used with the Clutch actuator adjustment jig (09430-C1302) |
|||
| 09430-C1302 Actuator fixing jig & Motor shaft reset tool |
Used for adjusting clutch actuator Used with the Clutch actuator adjuster (09430-C1300) |
|||
| 09430-A5100 Clutch engagement fork fixing jig |
Used for removing clutch actuator assembly | |||
|
||||
