Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

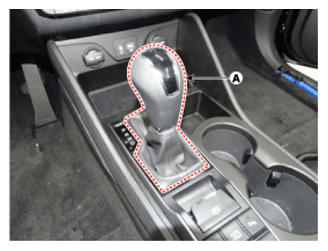

  1. Remove the shift lever knob & boots (A).
    G12609297Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

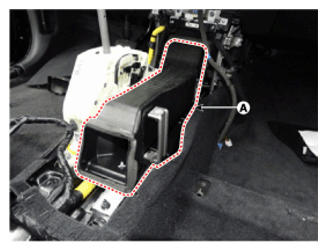

  3. Remove the air duct (A).
    G12609298Courtesy of HYUNDAI MOTOR AMERICA

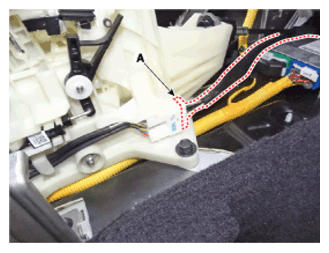

  4. Disconnect the main connector (A).
    G12609299Courtesy of HYUNDAI MOTOR AMERICA

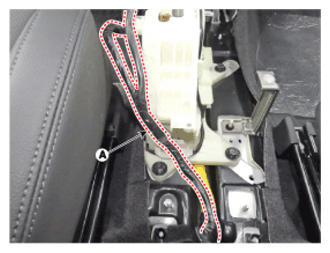

  5. Disconnect the wiring fixed clip (A).
    G12609300Courtesy of HYUNDAI MOTOR AMERICA

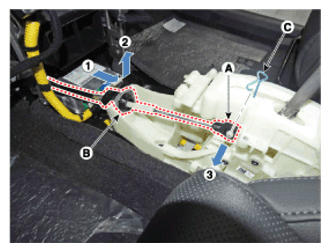

  6. Disconnect the shift cable.
    1. Disconnect the cable holder (A) from the shift lever, after removing the snap pin (C).
    2. Disconnect the cable bracket (B) from the shift lever after pushing the lock.
      G12609301Courtesy of HYUNDAI MOTOR AMERICA

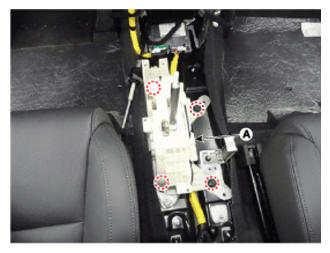

  7. Remove the shift lever assembly (A) after removing the bolts.

    Tightening torque:

    8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

    G12609302Courtesy of HYUNDAI MOTOR AMERICA
