Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install in the reverse order of removal.
NOTE:
- Before installing, check that the shift lever and manual control lever are placed in the "N" position.

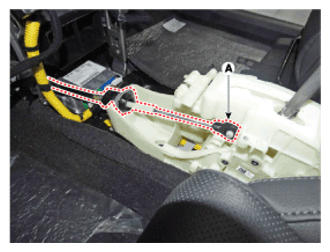

- Insert the shift cable after checking the direction of projection (A) to prevent wrong assembly.
 Courtesy of HYUNDAI MOTOR AMERICA
|
