Section 21 (Dual Clutch Transmission Control System - 1.6L)
>>
Shift Lever
>>
Components and Components Location
>>
Components (1)
Components (1)
WARNING:
This page is about a different variant/trim than selected.

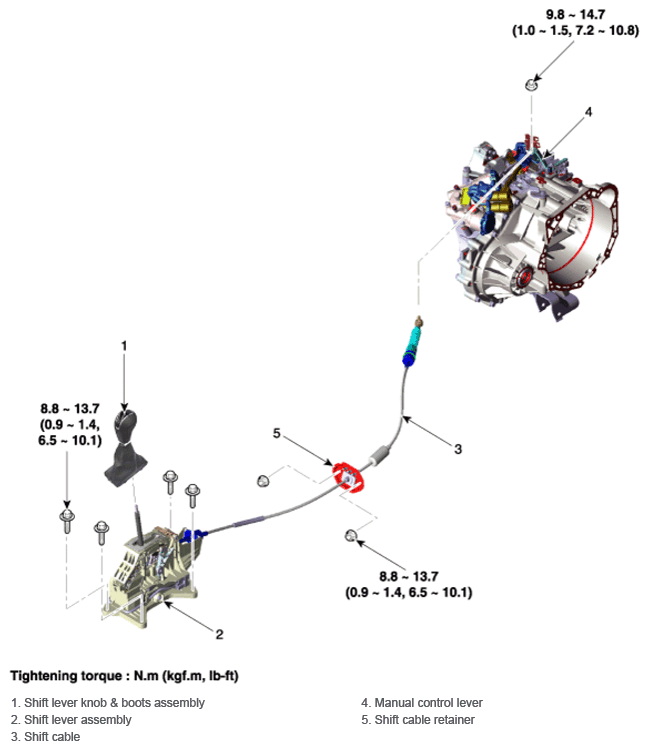

Fig 1: Shift Lever Components With Torque Specification (1)
Courtesy of HYUNDAI MOTOR AMERICA
