Home >> Hyundai >> 2018 >> Tucson Sport, 4WD >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 21 (Dual Clutch Transmission Control System - 1.6L) >> Input Shaft Speed Sensor 2 >> Schematic Diagrams >> Circuit Diagram

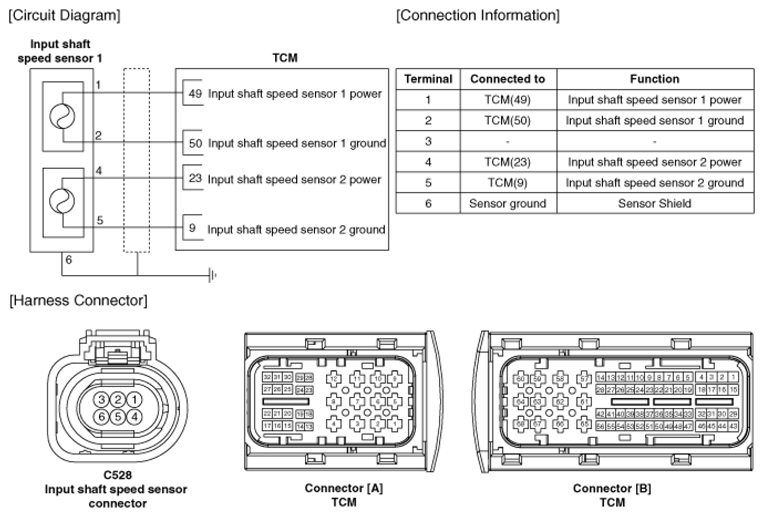

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

G12609273

Courtesy of HYUNDAI MOTOR AMERICA
