Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

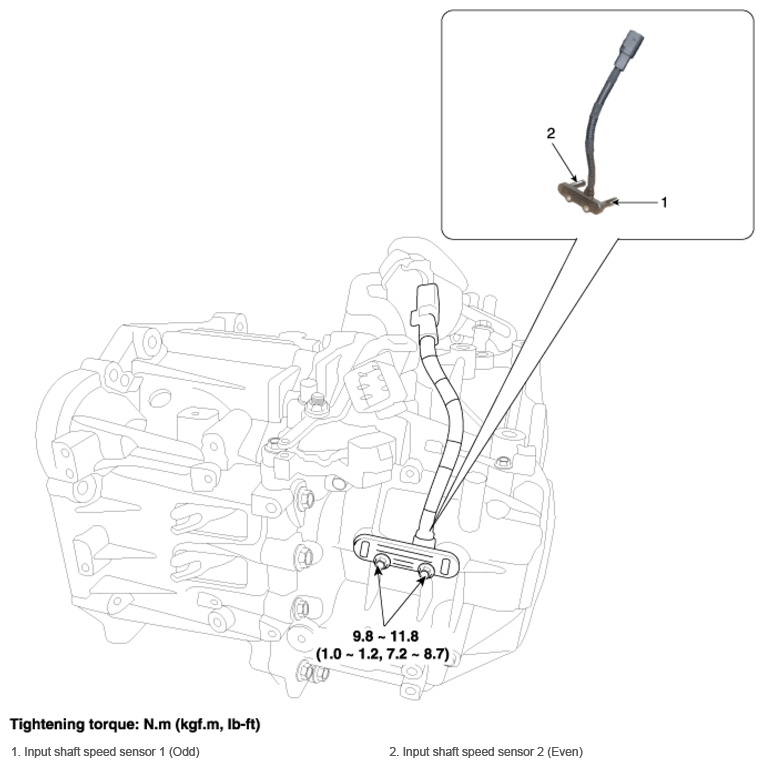

Fig 1: Input Shaft Speed Sensor 2 Components With Torque Specification
G12609271Courtesy of HYUNDAI MOTOR AMERICA
