Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the TCM.
(Refer to Dual Clutch Transmission Control System - "DCT Control Module (TCM) ")
- Remove the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the clutch actuator.
(Refer to Dual Clutch Transmission Control System - "CLUTCH ACTUATOR ")
- Disconnect the input shaft speed sensor (A).

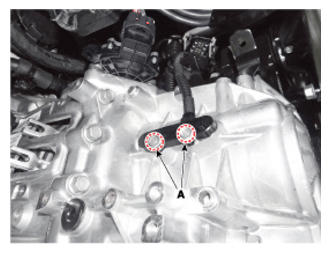

- Remove the input shaft speed sensor after removing the bolt (A-2ea).
