Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Make sure vehicle does not roll before setting shift lever to "N" position.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the TCM.
(Refer to Dual Clutch Transmission Control System - "DCT Control Module (TCM) ")
- Remove the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")

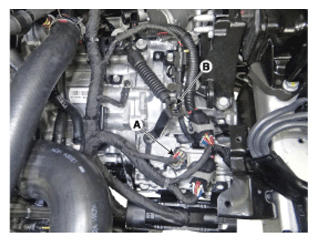

- Disconnect the inhibitor switch connector (A)
- Remove the shift cable mounting nut (B).

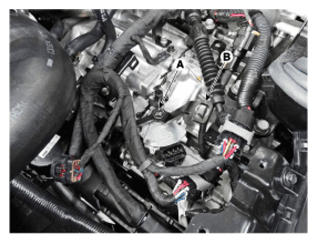

- Remove the manual control lever (B) and the washer after removing a nut (A).

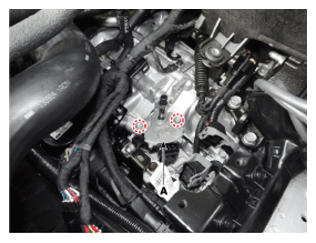

- Remove the inhibitor assembly (A) after removing the bolts.
