Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
    NOTE:
    • Check the details below before installing the gear actuator assembly.
    1. Check that the gear actuator is placed in the "neutral" state.
    2. Check the assembled state of the O-rings (A).
      G12609261Courtesy of HYUNDAI MOTOR AMERICA
    3. Apply gear oil to the surface of O-rings.
    4. Check the assembled state of the dowel pins (A).
      G12609262Courtesy of HYUNDAI MOTOR AMERICA

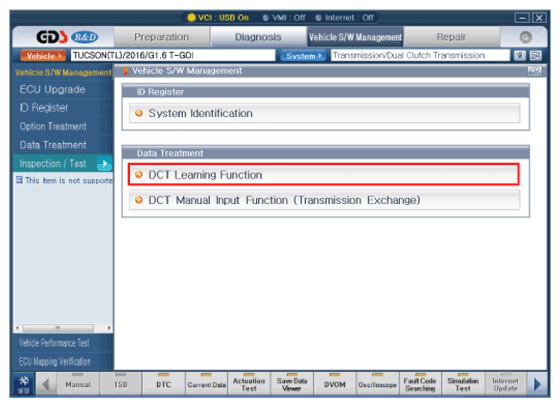

    • Perform the clutch touch point learning procedure using the GDS after replacing the gear actuator assembly.
      G12609263Courtesy of HYUNDAI MOTOR AMERICA
