Section 21 (Dual Clutch Transmission Control System - 1.6L)
>>
DCT Control Module (TCM)
>>
Schematic Diagrams
>>

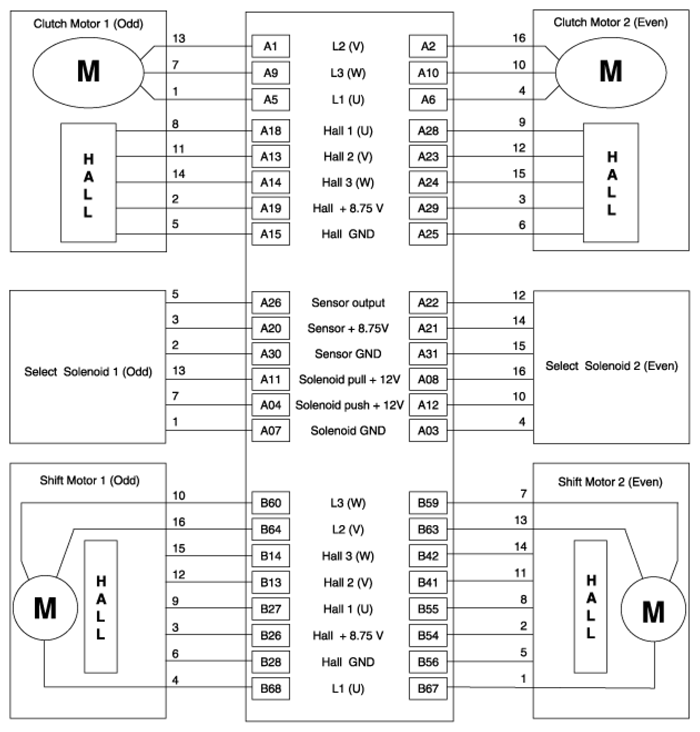

Circuit Diagram

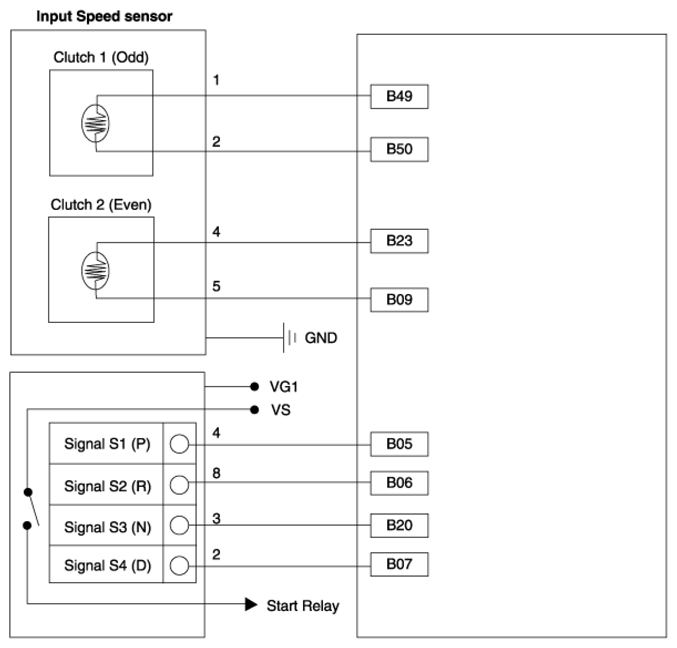

Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
