Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal.

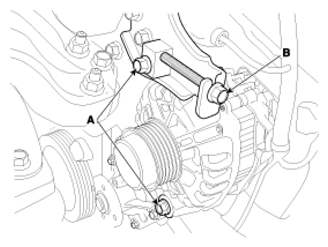

- Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.
- Remove the drive belt (A).
- Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).

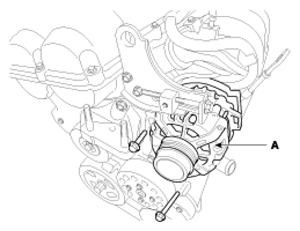

- Remove the alternator (A).
