Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative (-) cable.
  2. Remove the battery.

    (Refer to Charging System - "BATTERY ")

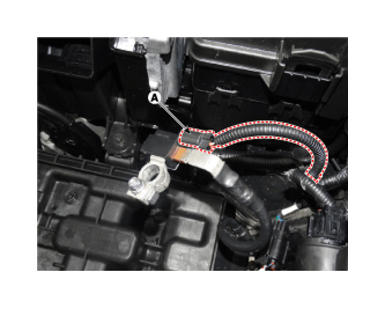

  3. Disconnect the battery sensor connector (A).
    G12610785Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the battery negative (-) cable after removing the bolt (A).
    G12610786Courtesy of HYUNDAI MOTOR AMERICA
