Removal and Installation
WARNING: This page is about a different variant/trim than selected.

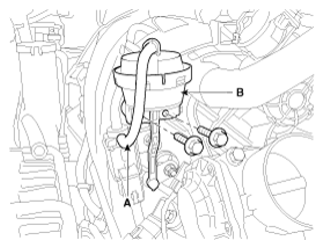

- Disconnect the vacuum hose (A).
- Remove the variable Intake solenoid (VIS) actuator (B)
Tightening torque:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
