Main Muffler
WARNING: This page is about a different variant/trim than selected.

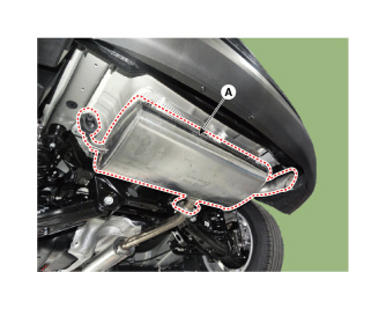

- Remove the main muffler (A).
Tightening torque:
39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
- When installing, replace with new gaskets.
- Install in the reverse order of removal.
