Front Muffler
WARNING: This page is about a different variant/trim than selected.
- Disconnect the heated oxygen sensor connector (A) and then remove it from the bracket.

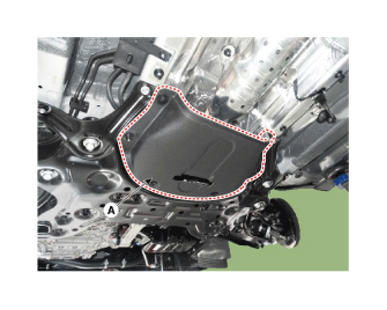

- Remove the engine room under rear cover assembly (A).

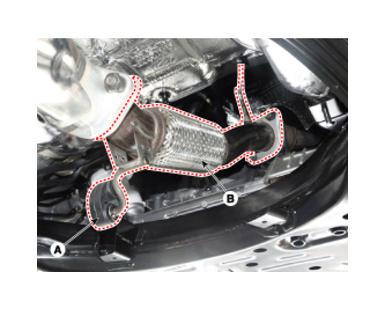

- Detach the rubber hanger (A) from the front muffler.
- Remove the front muffler (B).
Tightening torque: 39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
NOTE:- When installing, replace with new gaskets.
- Install in the reverse order of removal.
