Repair Procedures: Removal
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

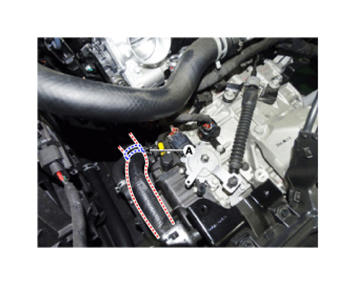

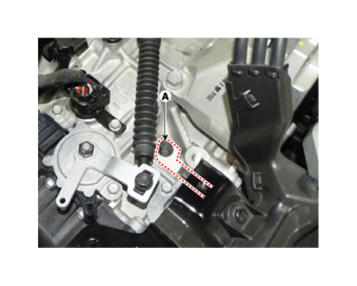

- Remove the ground line after removing the bolt (A).

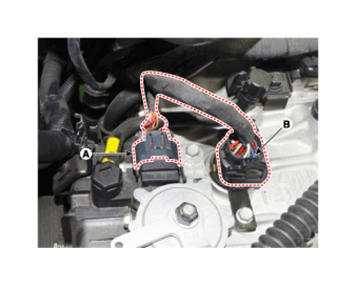

- Disconnect the solenoid valve connector (B) and inhibitor switch connector (A).

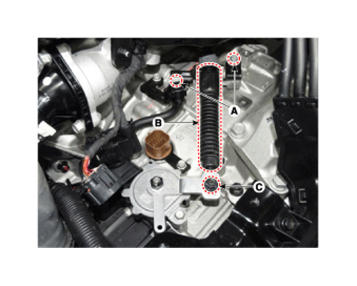

- Remove the control cable (B) after removing the nut (C) and the bolt (A).
Tightening torque:
(A) 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)
(C) 9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

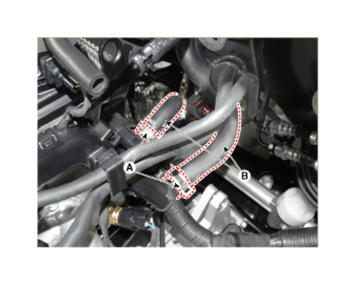

- Remove the fixing clips (A) and (B) of wiring.
- Remove the fixing clips (A) of wiring.

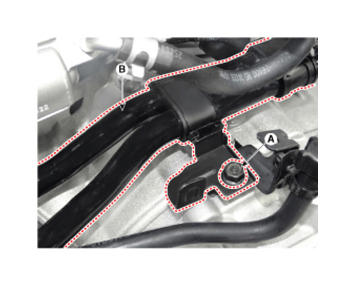

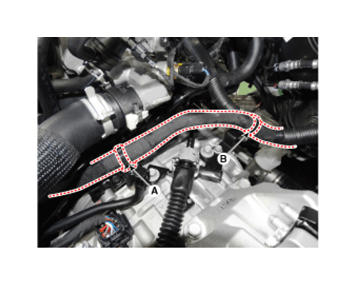

- Disconnect the coolant hose (B) after removing the automatic transaxle coolant hose clamp (A).

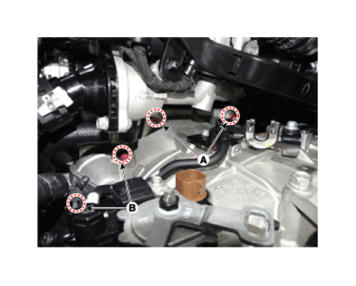

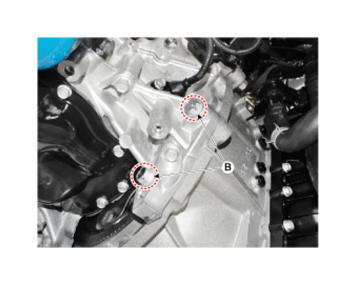

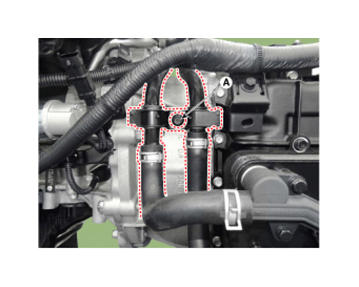

- Remove the coolant pipe mounting bolts (A).
- Remove the coolant pipe (B).
Tightening torque:
(A) 8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
CAUTION:- Carefully install the clamp not to damage the hose.
- Install the clamp in a correct direction not to be interfered with other parts.
- After the installation, start the engine and then check if there are any leakages from the hose

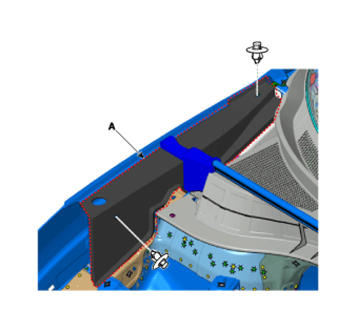

- Remove the fender apron cover (A) on both sides.
- Assemble the engine support fixture (beam No.: 09200-38001 or 09200-3N000, supporter No.: 09200-2S000).
(Refer to Engine support fixture assembly drawing - " SPECIAL SERVICE TOOLS ")

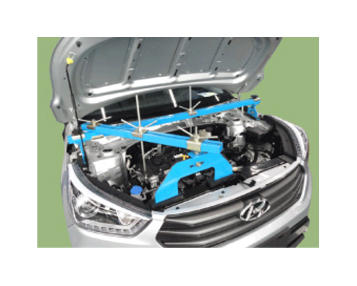

- Using the engine support fixture (A), hold the engine and transaxle assembly safely.
- Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter mounting bolt (B-2ea).
Tightening torque:
(A) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
(B) 42.2 ~ 54.0 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
- Remove the mud guard.
(Refer to Body - "FRONT MUD GUARD ")

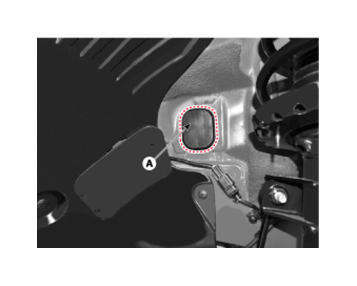

- Remove the automatic transaxle mounting bracket cover (A).

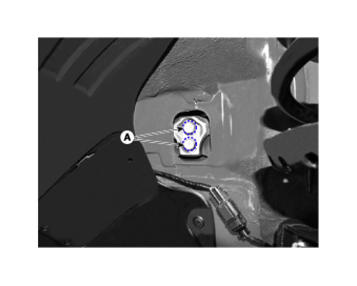

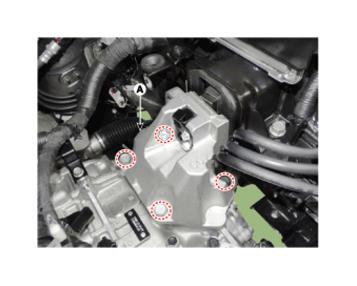

- Remove the automatic transaxle support bracket mounting bolts (A).
Tightening torque:
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.8 lb-ft)
- Remove the automatic transaxle support bracket (A).
Tightening torque
58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)
- Lift the vehicle with a jack.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the drive shaft assembly.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")
- In case of 4WD vehicle, remove the transfer assembly.
(Refer to 4 Wheel Drive System - "FRONT WHEEL TRANSFER ASSEMBLY ")

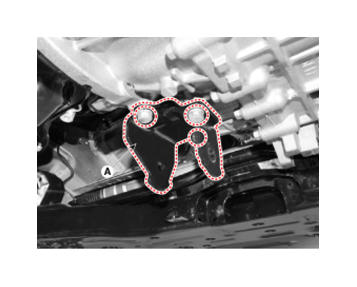

- Remove the roll road support bracket (A).
Tightening torque:
49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)
- Remove the transfer assembly.
(Refer to 4 Wheel Drive System - "FRONT WHEEL TRANSFER ASSEMBLY ")

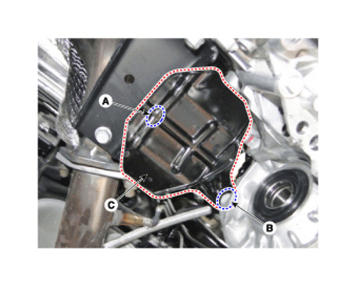

- Remove the heater protector (C) after removing the bolt (A) and (B).
Tightening torque:
(A) 11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)
(B) 21.6 ~ 25.5 N.m (2.2 ~ 2.6 kgf.m, 15.9 ~ 18.8 lb-ft)

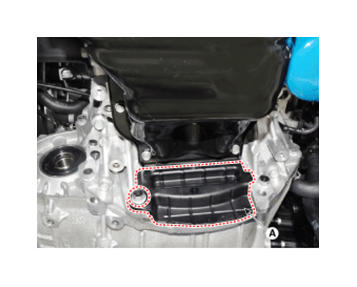

- Remove the dust cover (A).
Tightening torque:
42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)

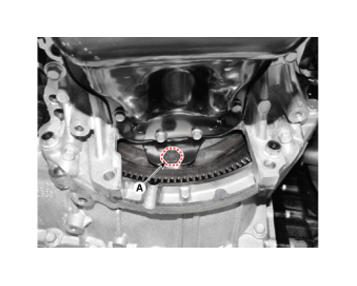

- Remove the torque converter mounting bolts (A) with rotating the crankshaft.

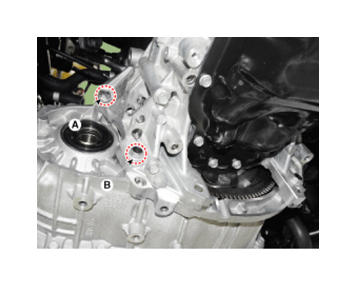

- Remove the automatic transaxle with a jack after removing the mounting bolts (A, B).
Tightening torque:
- 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
- 42.2 ~ 48.1 N.m (4.3 ~ 4.9 kgf.m, 31.1 ~ 35.4 lb-ft)
CAUTION:- Be careful not to damage other system or parts near by when removing the transaxle assembly.
