Section 17 (Automatic Transaxle System - 2.0L)
>>
Automatic Transaxle
>>
Components and Components Location
>>
Components Location (1)
Components Location (1)
WARNING:
This page is about a different variant/trim than selected.

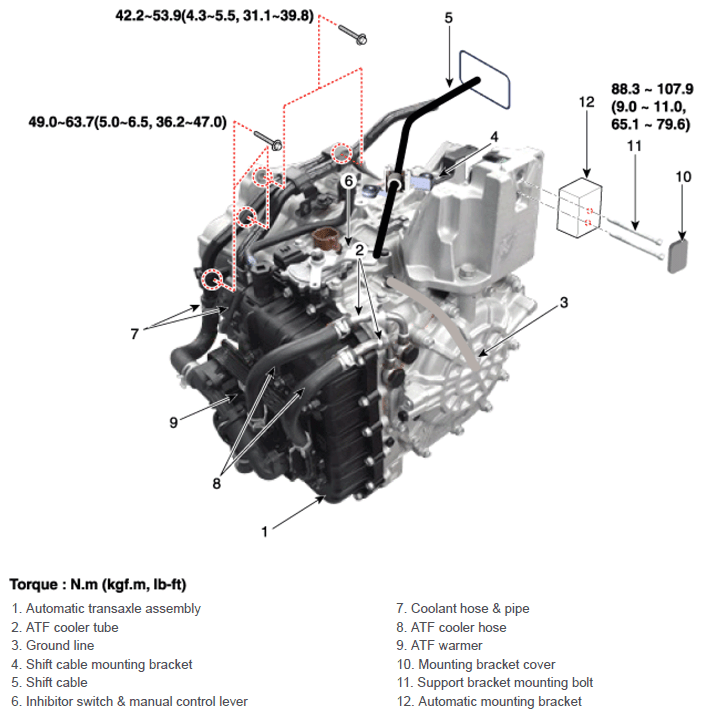

Fig 1: Automatic Transaxle Components With Torque Specification (1)
Courtesy of HYUNDAI MOTOR AMERICA
