Section 16 (Engine Control System - 1.6L)
>>
Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>

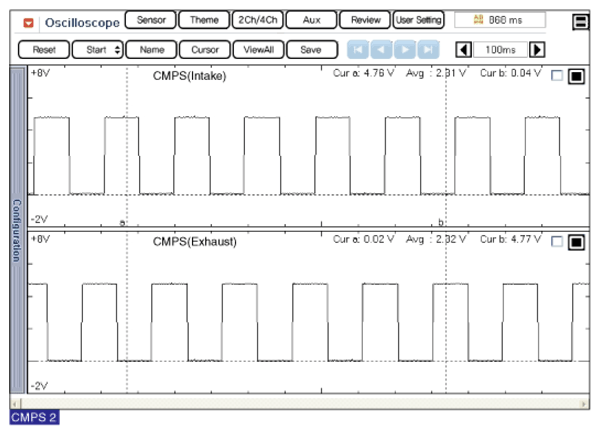

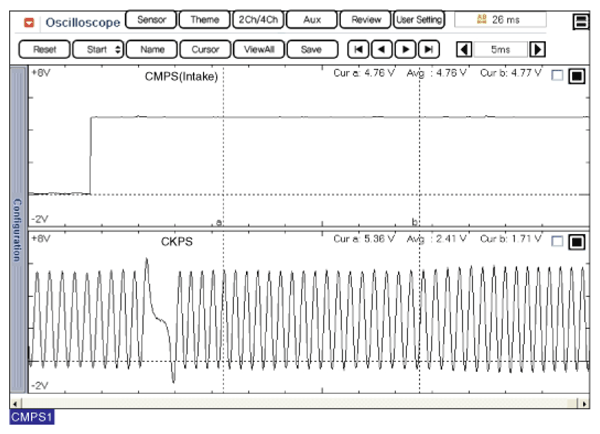

Wave Form
Wave Form
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
