Transaxle Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the ECM.
(Refer to Fuel System - "ENGINE CONTROL MODULE ")
Remove the LH front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")
Install the jack to the edge of transaxle.

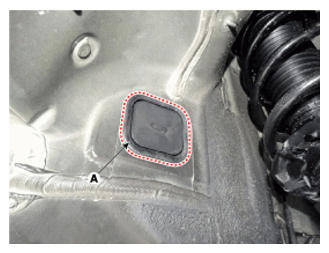

Remove the service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

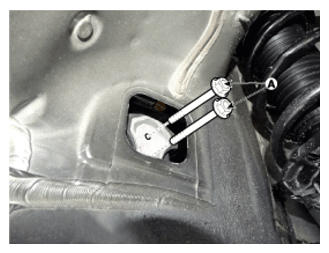

Remove the transaxle mounting bolts (A).
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

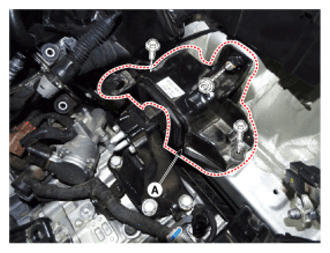

Remove the transaxle mounting bracket (A).
Tightening torque:

63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
