Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the water temperature control assembly.
(Refer to Cooling System - "Water Temperature Control Assembly ")
- Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")

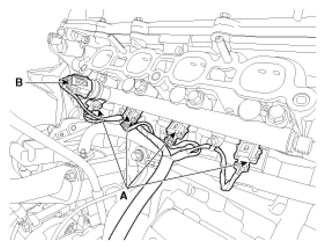

- Disconnect the injector connectors (A).
- Disconnect the rail pressure sensor (RPS) connector (B).

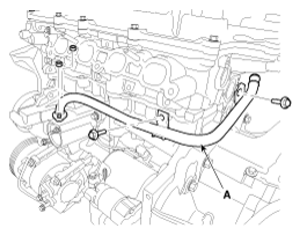

- Remove the water pipe (A).
Tightening torque
M6 bolt and nuts:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
M8 bolt:
18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)
- Install in the reverse order of removal.
