Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Remove the cooling fan.
(Refer to Cooling System - "Cooling Fan ")
Loosen the drain plug, and drain the coolant.
Remove the radiator cap to speed draining.

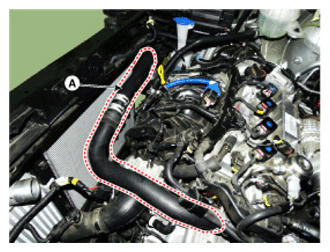

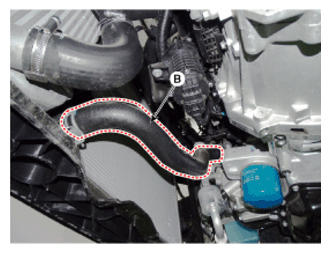

Remove the radiator upper hose (A) and lower hose (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

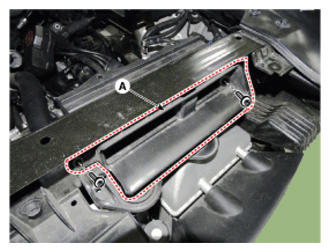

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

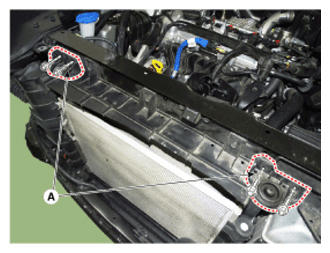

Remove the radiator upper bracket bolts (A).
Tightening torque:

7.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

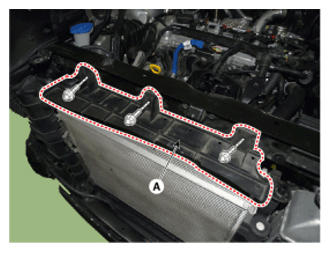

Remove the upper air guard (A).

Courtesy of HYUNDAI MOTOR AMERICA

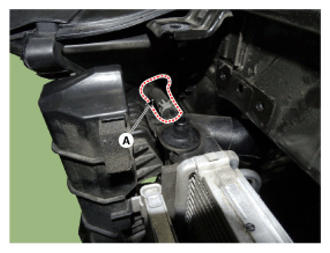

Disconnect the return hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

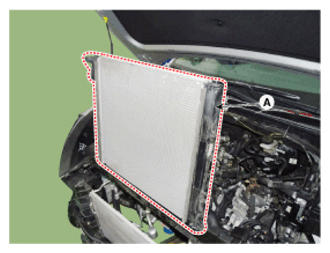

Pull the radiator (A) upward and remove it from engine room.

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Bleed air from the cooling system.
- Start engine and let it run until it warms up (until the radiator fan operates 3 or 4 times).
- Turn off engine. Check the coolant level and add coolant if needed. This will allow trapped air to be removed from the cooling system.
- Put the radiator cap on tightly, then run engine again and check for leaks.
