Removal and Installation: Disassembly
WARNING: This page is about a different variant/trim than selected.

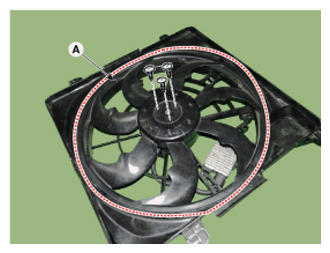

- Remove the cooling fan (A) from the cooling fan assembly.
Tightening torque:
2.8 ~ 3.2 N.m (0.28 ~ 0.33 kgf.m, 2.03 ~ 2.39 Ib-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|

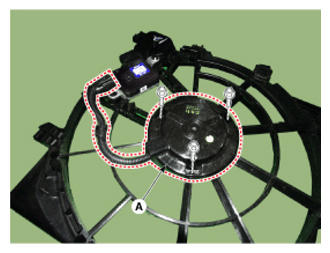

- Remove the cooling fan motor (A).
Tightening torque:
4.21 ~ 4.70 N.m (0.43 ~ 00.48 kgf.m, 23.11 ~ 23.47 Ib-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
