Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.

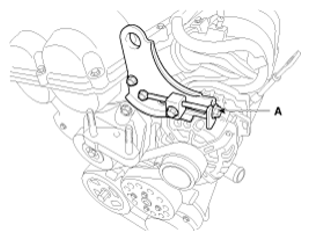

  2. Loosen the alternator tension adjusting bolt (A) to loosen tension.
    G12608537Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the drive belt (A).
    G12608538Courtesy of HYUNDAI MOTOR AMERICA
