Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install the drive belt (A).

Fig 1: Engine Drive Belt Routing Diagram
Courtesy of HYUNDAI MOTOR AMERICA

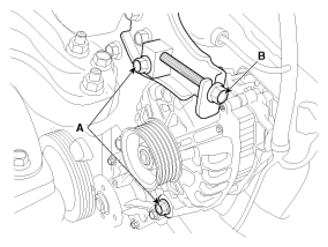

Adjust tension by tightening the alternator tension adjust bolt (B) and then install the mounting bolts (A).
Tightening torque

12 mm (0.47 in) bolt:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 Ib-ft)

14 mm (0.55 in) bolt:

29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Connect the battery negative terminal.
