Drive Belt Tension Measurement And Adjustment

WARNING: This page is about a different variant/trim than selected.

Belt tension measurement

Measure the belt tension using a mechanical tension gauge or a sonic tension meter.

Tension

New Belt:

961.0 ~ 980.7 N (98.0 ~ 100.0 kgf, 216.1 ~ 220.5 lbf)

Used Belt:

637.4 ~ 735.5 N (65.0 ~ 75.0 kgf, 143.3 ~ 165.3 lbf)

CAUTION:

If the engine has run for 5 minutes or more, the belt tension must be adjusted as a used belt.
When installing the V-ribbed belt, all grooves on the pulley should be covered with belt ribs.
A loose belt causes slip noise.
Too tight belt cause bearing of alternator and water pump to damage.

Using a mechanical tension gauge (BT-33-73F, BTG-2 type)

While pressing the handle (A) of the gauge, insert the belt (B) between pulley and pulley (or idler) into the gap between spindle (C) and hook (D).

Courtesy of HYUNDAI MOTOR AMERICA
After releasing the handle (A), read a value on the dial pointed by the indicator (B).

Courtesy of HYUNDAI MOTOR AMERICA

Using a sonic tension meter (U-505/507 type)

Input the belt specifications into the tension meter.

Belt type	Location of measurement	Input data
Belt type	Location of measurement	M (Mass, g/m.rib)	W (Width, rib)	S (Span, mm)
With A/C	Crankshaft pulley to A/C compressor pulley	13.4	6	178.9
Without A/C	Idler to alternator pulley	13.4	6	Actual measurement value

NOTE:

Measurement of S (Span): Calculate average value after

Courtesy of HYUNDAI MOTOR AMERICA

d: Alternator pulley

Courtesy of HYUNDAI MOTOR AMERICA

If adjustment is necessary

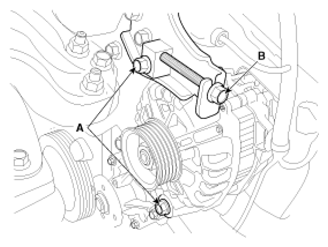

Loosen the mounting bolts (A).
Tighten the adjusting bolt (B) clockwise in loose tension; loosen the bolt counterclockwise in high tension.

Courtesy of HYUNDAI MOTOR AMERICA
Recheck tension of the belt.
After adjusting tension, tighten the through bolts.
Tightening torque

12 mm (0.47 in) bolt:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 Ib-ft)

14 mm (0.55 in) bolt:

29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 Ib-ft)
