Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")
- Remove the alternator.
(Refer to Engine Electrical System - "ALTERNATOR ")

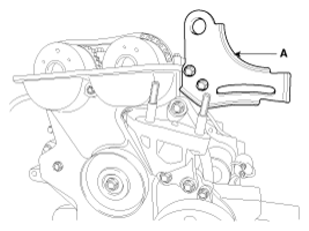

- Remove the alternator bracket (belt tensioner) (A).
Tightening torque:
19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)
- Install in the reverse order of removal.
