Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

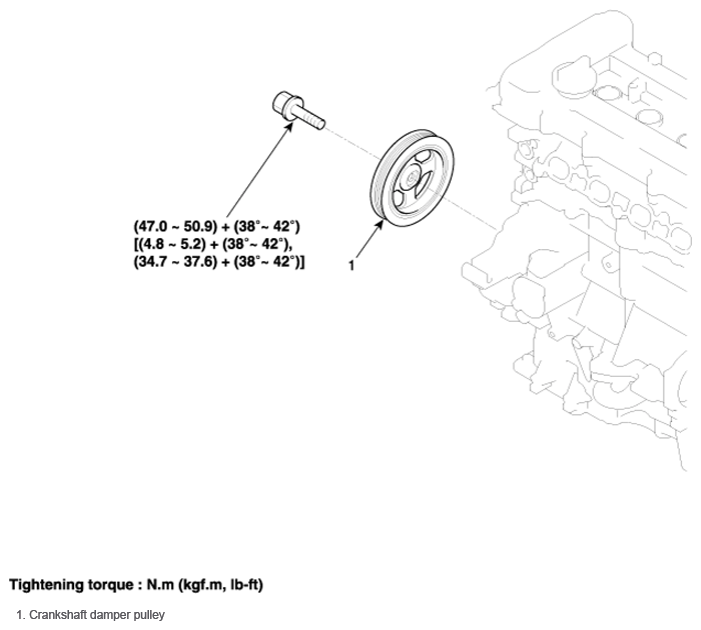

Fig 1: Crankshaft Damper Pulley With Torque Specification
G12608553Courtesy of HYUNDAI MOTOR AMERICA
