Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

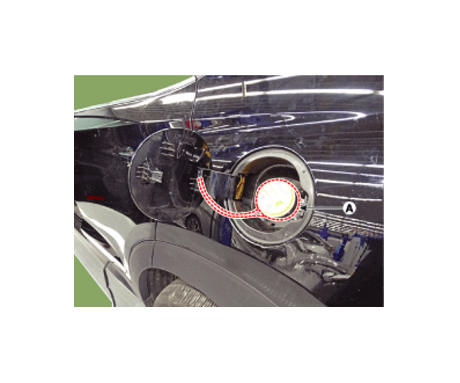

- Open the fuel filler door (A).

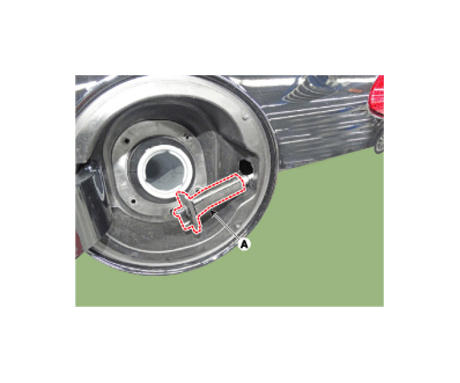

- Remove the fixing catch (A) securing the fuel filler door in the direction of the arrow.

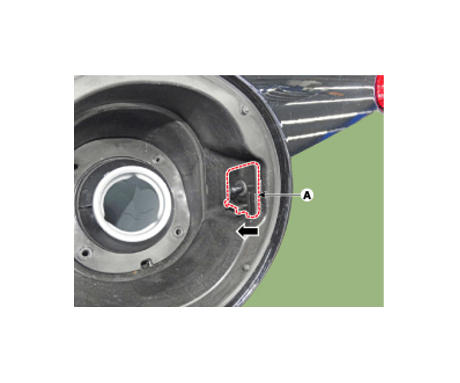

- Using a screwdriver or remover, remove the fuel filler door bracket (A) and cable.
- Loosen the mounting screws and remove the fuel filler door packing (A).

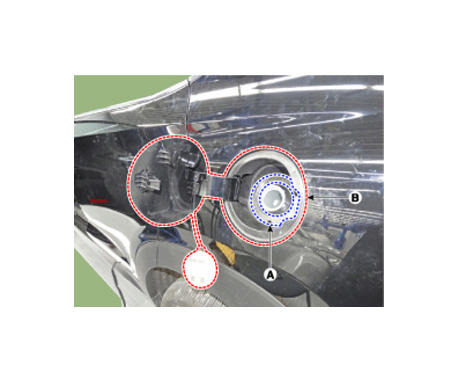

- Using a screwdriver or remover, remove the fuel filler door housing (B).
Information
- Pull out from inside of the packing part when removing the fuel filler door housing.
- Install in the reverse order of removal.
Information
- Make sure the fuel filler door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
