Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.

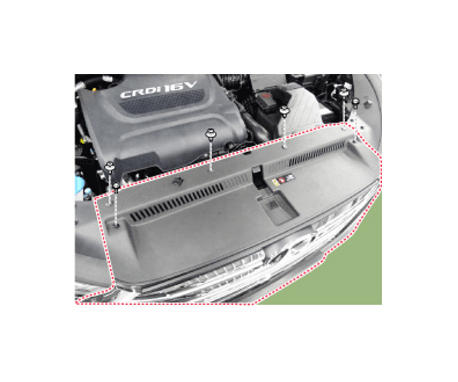

  1. Loosen the pin-type retainers and bolts of the front bumper upper.
    G12614219Courtesy of HYUNDAI MOTOR AMERICA

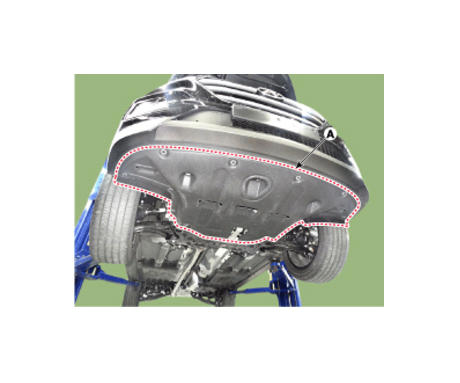

  2. Remove the engine under cover (A).
    G12614220Courtesy of HYUNDAI MOTOR AMERICA

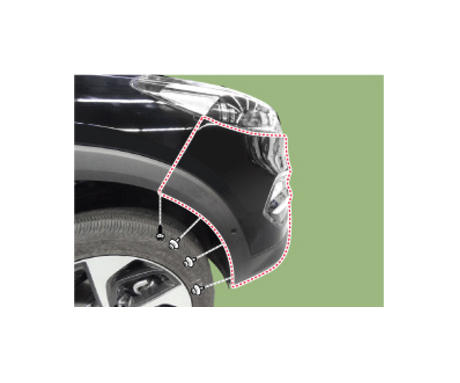

  3. After loosening the pin-type retainers and screws on the side of front bumper, detach the side part of front bumper.
    CAUTION: When you pull out the front bumper, the side part of the front bumper could be damaged by the projection.
    G12614221Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the front bumper connector (A).

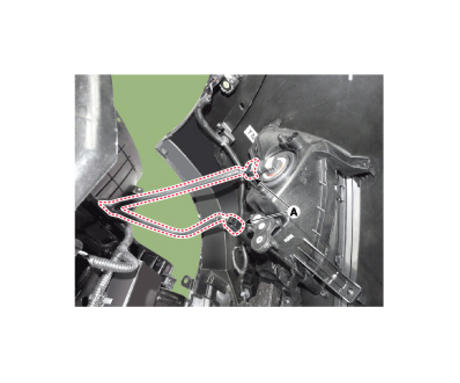

    [LH]

    G12614222Courtesy of HYUNDAI MOTOR AMERICA

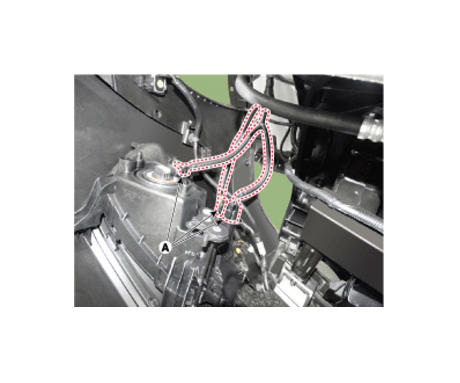

    [RH]

    G12614223Courtesy of HYUNDAI MOTOR AMERICA

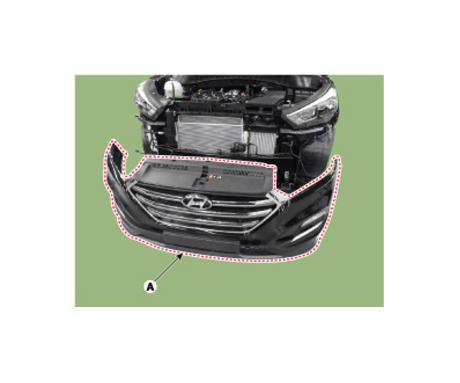

  5. Remove the front bumper cover (A).
    G12614224Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.

    Information

    1. Make sure the connector is plugged in properly.
    2. Replace any damaged clips (or pin-type retainers).
