Repair Procedures: Replacement

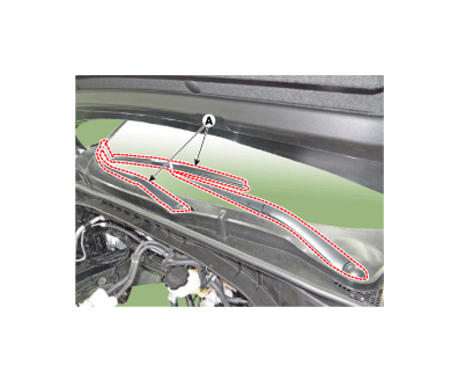

- Remove the cap and the nuts, and then remove the wiper arm (A).
Tightening torque:
22.6 ~ 26.5 N.m (2.3 ~ 2.7 kgf.m, 16.6 ~ 19.5 lb-ft)

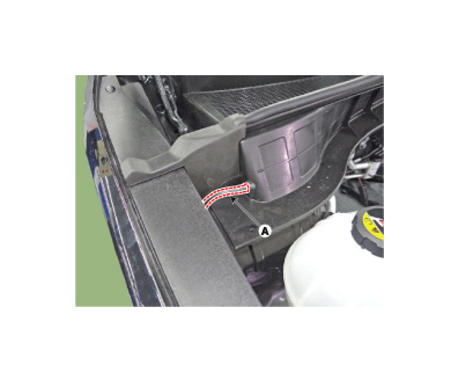

- Disconnect the washer nozzle (A).

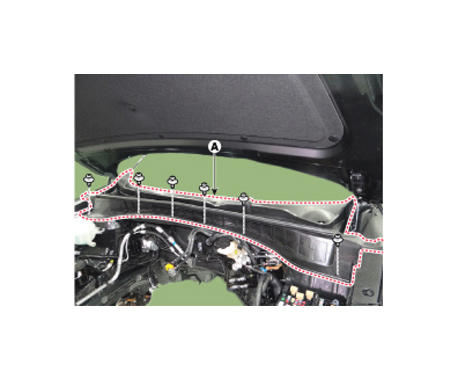

- Detach the clips, then remove the cowl top cover (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips (or pin-type retainers).
