Instrument Cluster Speaker

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia upper panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

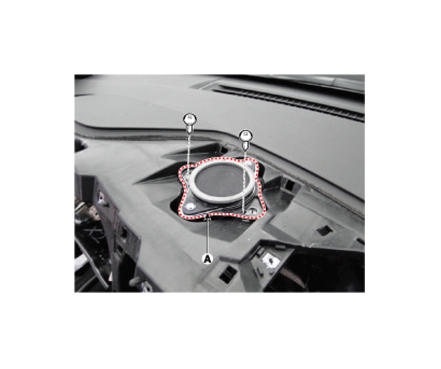

  3. Separate the instrument cluster speaker (A) after loosening the mounting screws.
    G12614655Courtesy of HYUNDAI MOTOR AMERICA

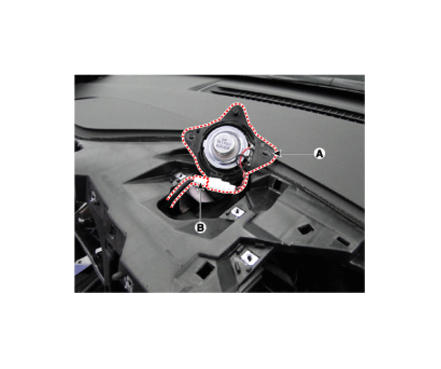

  4. Remover the instrument cluster speaker (A) after disconnecting the speaker connector (B).
    G12614656Courtesy of HYUNDAI MOTOR AMERICA
