[Steering Column Shroud Lower Panel]
CAUTION:
Put on gloves to prevent hand injuries.
Information
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

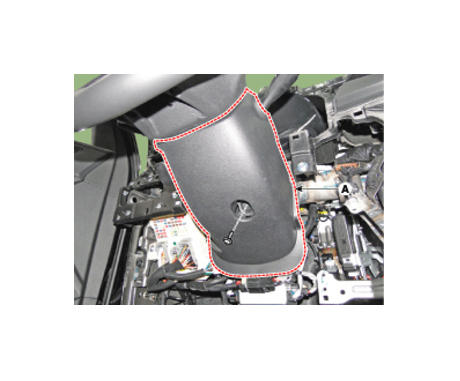

- Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips (or pin-type retainers).
