Repair Procedures: Replacement
CAUTION:
Put on gloves to prevent hand injuries.
Information
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")

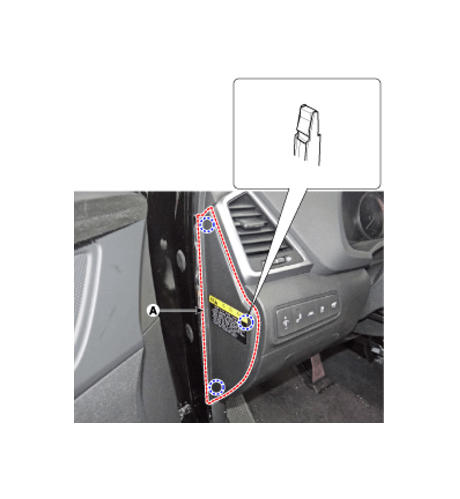

- Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

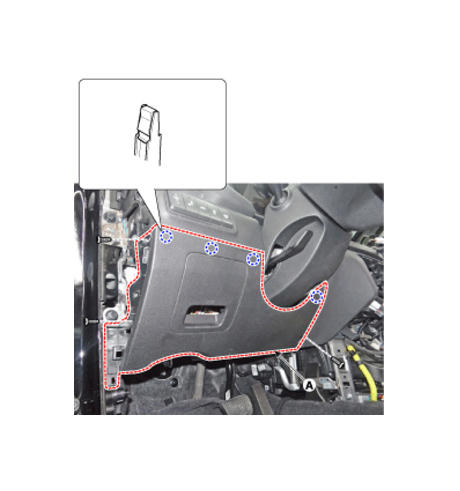

- Loosen the mounting screws and remove the crash pad lower panel (A).

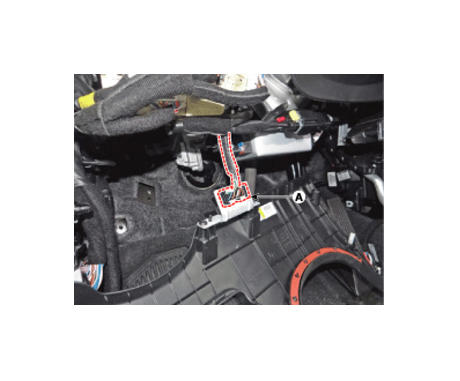

- Disconnect the crash pad lower switch connectors (A).
- Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin-type retainers).
