Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
Remove the cluster fascia panel.
(Refer to Crash Pad - "CLUSTER FASCIA PANEL ")
Remove the heater & A/C control unit.
(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROL UNIT (MANUAL) ")

(Refer to Heating, Ventilation, Air Conditioning - "HEATER & A/C CONTROL UNIT (DATC) ")

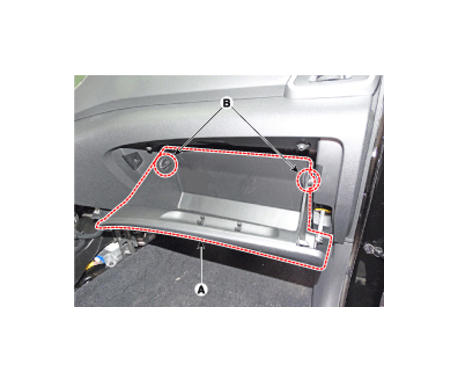

Remove both stoppers (B) from the glove box (A) by turning the stoppers.

Courtesy of HYUNDAI MOTOR AMERICA

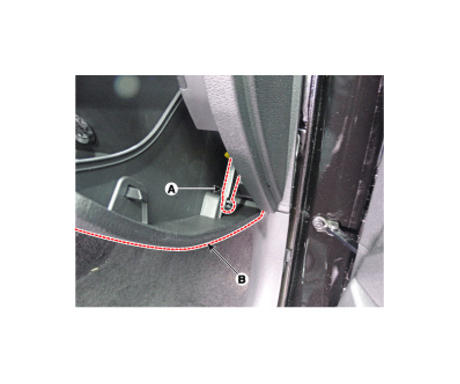

Separate the air damper (A) from the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA

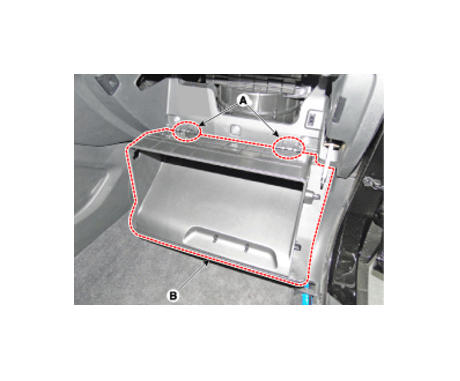

Disconnect the pushpins (A) and then remove the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA

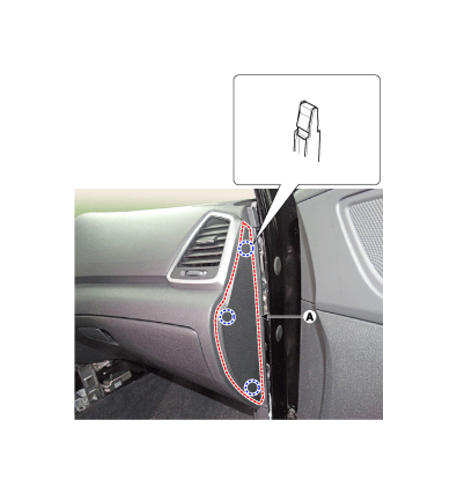

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

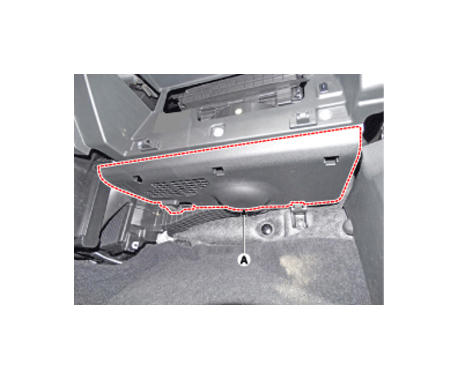

Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

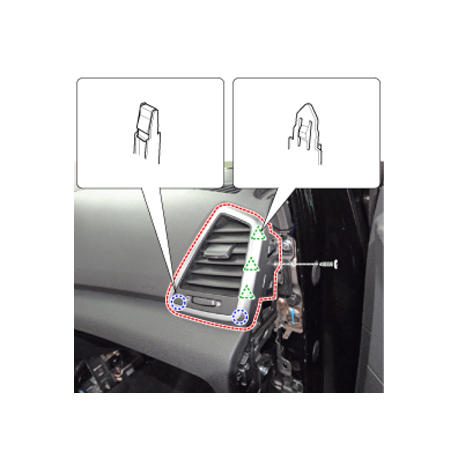

Loosen the mounting screws and remove the crash pad air vent duct [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

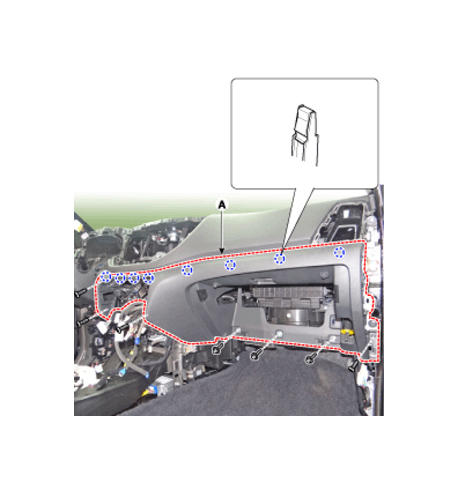

After loosening the mounting screws and bolts, remove the crash pad center panel (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the start/stop button connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

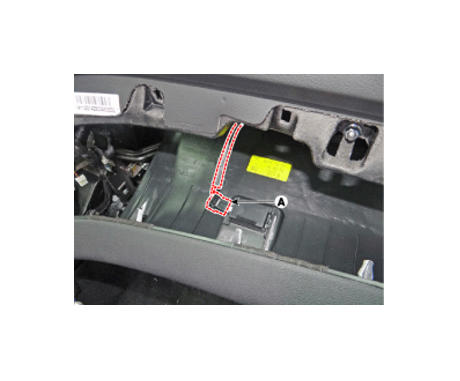

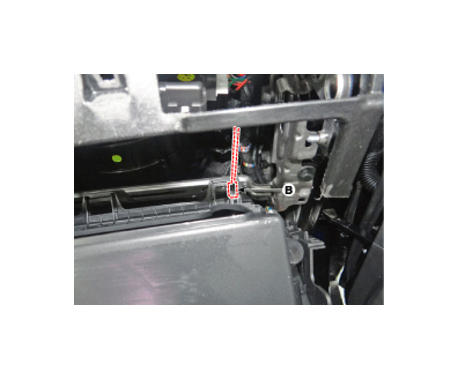

Disconnect the glove box lamp connector (A) and glove box lamp switch connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin-type retainers).
